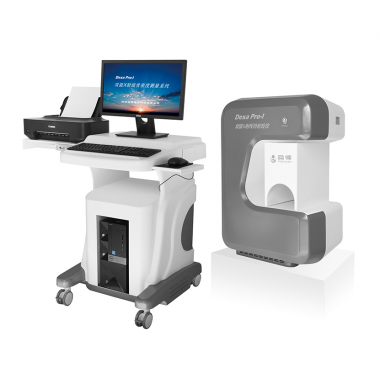

Dexa Pro-I
（Dual Energy X-ray Absorptiometry）
Bone Densitometer
Technical Specifications
Large Scale Integrated Circuit
Multi -Layer Circuit Board Design
Light Source Technology With High Frequency and Small Focus
Imported High Sensitivity Digital Camera
Using the Cone - Beam and Surface Imaging Technology
Using Laser Beam Positioning Technique
Using the Unique Algorithms.
Mould Manufactured, Beautiful and Practical
Special Analysis System Based on Different Countries People
Technical Parameter:
1. Using the Dual Energy X-Ray Absorptimetry.
2. Using the Most Advanced Cone - Beam
and Surface Imaging Technology.
3. With High Measurement Speed and Short Measurement Time.
4. With Dual Imaging Technology to Get More Accurate Measurement.
5. Using Laser Beam Positioning Technique, Making the Measuring Position More Accurate.
6. Dectcing Image Digitization, to Get Accurate Measurement Results.
7. Adopting the Surface Imaging Technology, Measuring Faster and Better.
8. Using the Unique Algorithms to Get More Accurate Measurement Results.
9. Adopting the Full Closed Lead Protective Window to Measure, only Need to Put the Patient’s Arm into the Window. The Equipment is Indirect Contact with the Scanning Parts of the Patient. Easy to Operate for the Doctor. It is Safety for the Patient and Doctor.
10. Unique Shape, Beautiful Appearance and Easy to Use.
Performance Parameter:
1. Measurement Parts: the Front of Forearm.
2. Pulse Dual Energy X-Ray with High and Low, High Energy 85Kv, Low Energy 55Kv.
3. X-Ray Detector：Imported High Sensitivity Digital Camera.
4. X-Ray Source：Stationary Anode X-ray Tube (with High Frequency and Small Focus)
5. Imaging Way：Cone - Beam and Surface Imaging Technology.
6. Imaging Time：≤ 5 Seconds.
7. Accuracy（error）≤ 1％
8. Repeatability（error）≤1％
9. Measuring Parameter: Bone Density Score
10. Calculate parameter: T- Score, Z-Score
11. Operation： Brand Computer, CPU ≥ 3.2G, Memory ≥ 4G, HD ≥500G
12. Working Voltage: 220V±10%, 50Hz.
